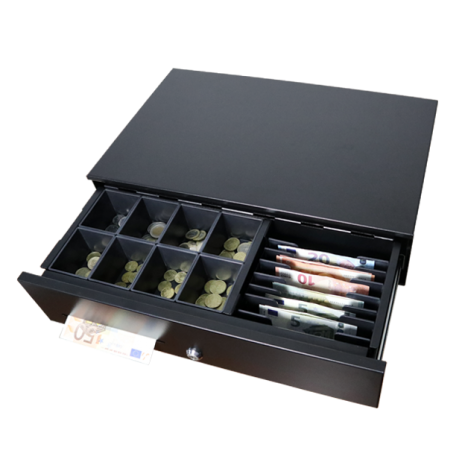

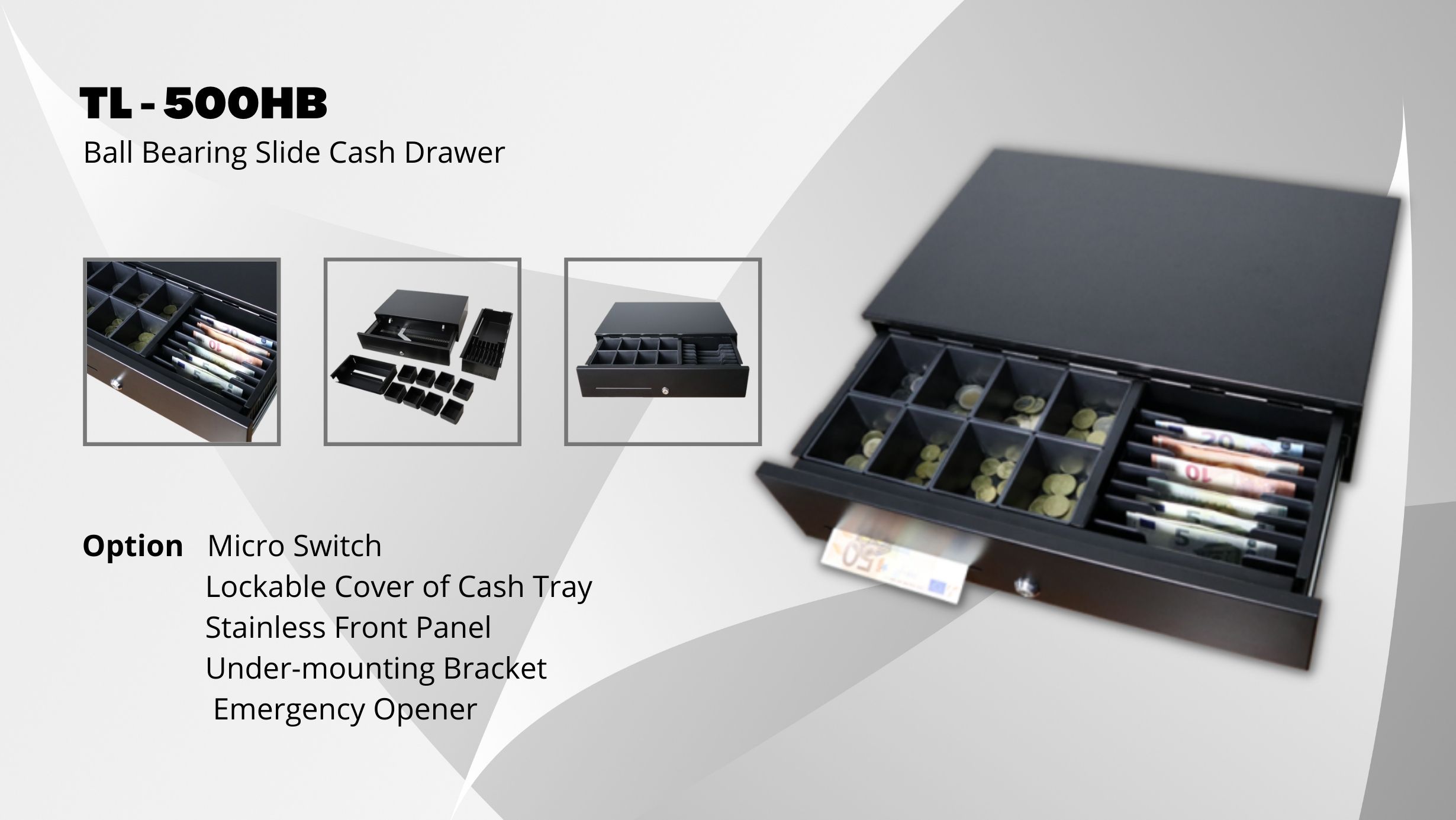

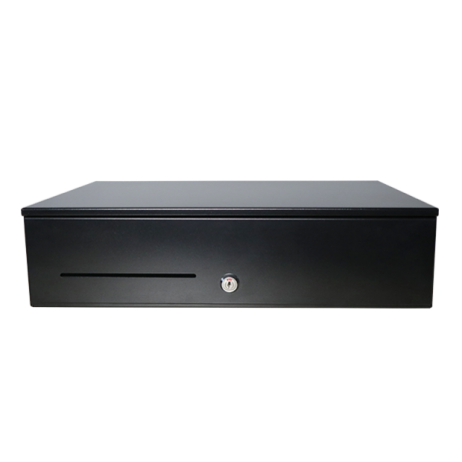

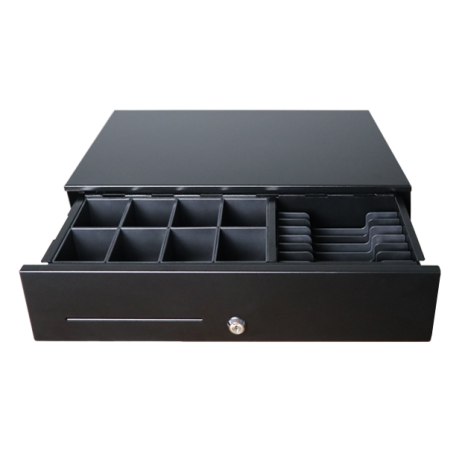

TL-500HB
- Overview
- Application
- Spec & Assembly
| Information | |
| Model | TL-500HB |

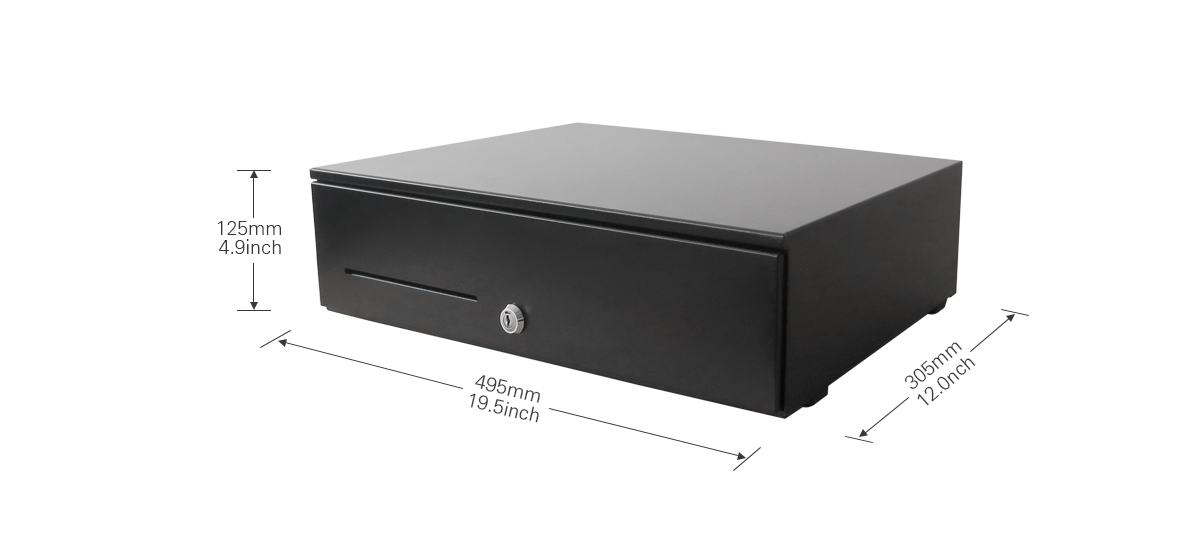

| Dimensions(mm) | 495W×305D×125H Excluding feet height |
| 495W×305D×133H Including feet height | |
| Dimensions(inch) | 19.5W×12.0D×4.9H Excluding feet height |
| 19.5W×12.0D×5.2H Including feet height | |
| Mechanism | Ball Bearing Slide |
| Material | Metal |
| Metal Drawer | Yes |
| Media Slot | 1 |
| Cash Tray | 8 vertical bills, removable and detachable,SPCC/alloy holders |
| Coin Tray | 8 detachable coin cups |
| Voltage | 12V/24V or customized |
| Connector | RJ11 or customized |
| Color | Black/ beige or customized |
| Lockset | 3 positions |
| Net Weight | 9.9Kg |

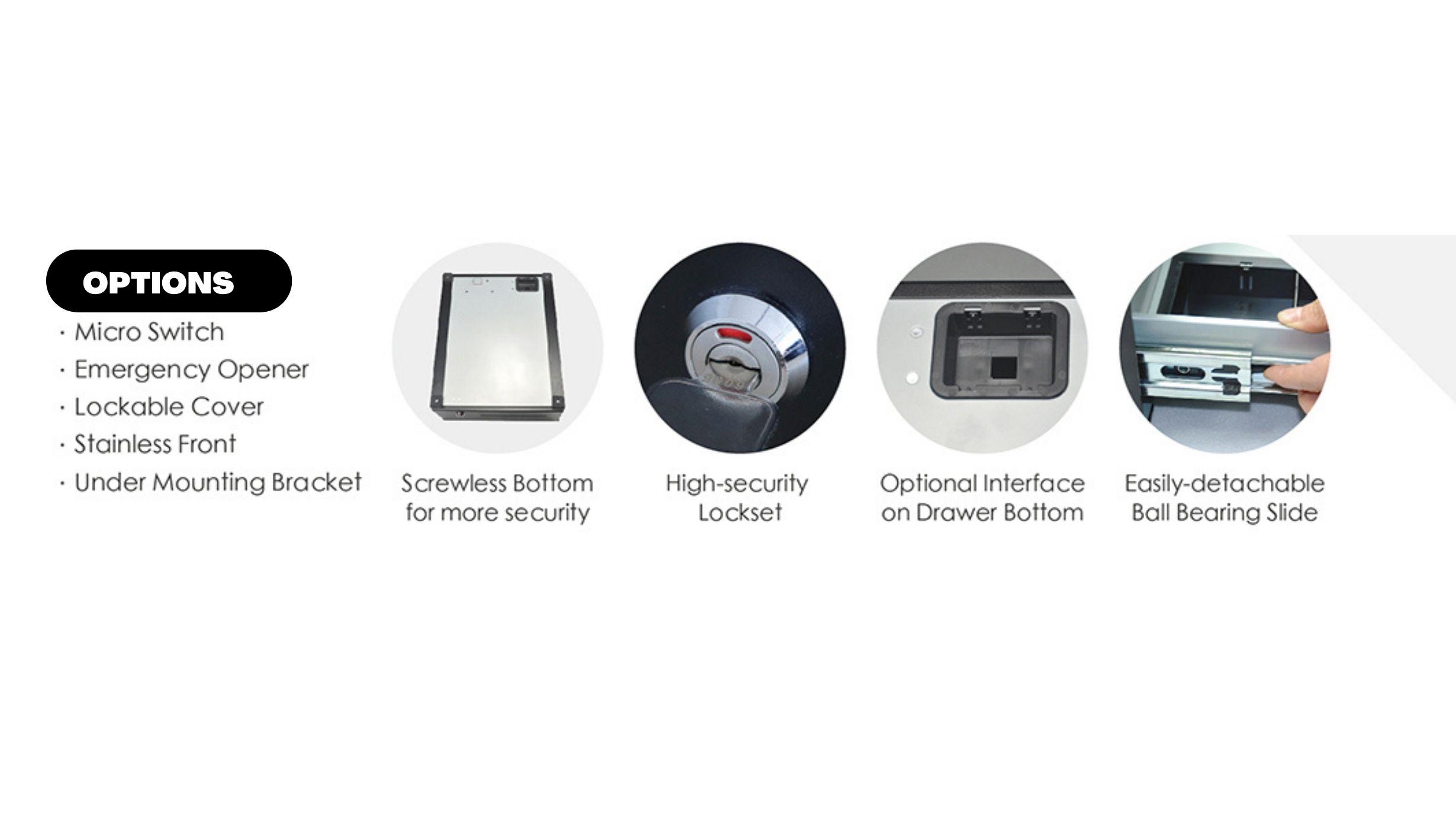

| Option | Micro Switch |
| Lockable Cover of Cash Tray | |
| Stainless Front Panel | |
| Under-mounting Bracket | |
